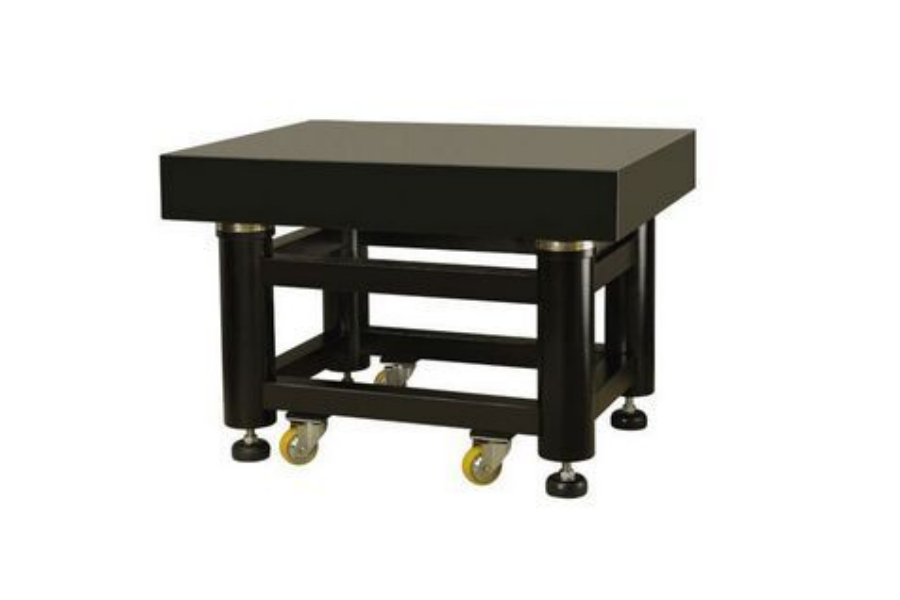

toone大理石光学平台
应用领域:
适合于现代光学、物理力学、激光电子、光通讯试验及仪器搭载等领域应用
产品特点:
◆至一科技精密阻尼隔振光学平台依托于航空工业人员背景研发制造的台面为国际00级的台桌型隔振光学平台，集成国标级阻尼橡胶垫，具有良好隔振效果。
◆台板采用国际0级花岗岩大理石。
◆高分子复合橡胶垫提供对高频振动的隔振能力。
◆隔振支撑为优质钢管焊接而成，整体坚固可靠，可选用安装标准移动脚轮，方便在工作场所内移动。
◆独特的水平调节机构，可以实现轻松水平调节的目的，稳定性能高。
技术指标:
| 平面度 | 0.05mm/m2 |
| 表面粗糙度 | < 0.8μm |
| 固有频率 | 水平方向: 3.5Hz~6Hz；垂直方向: 3.5Hz~6Hz |
| M6螺纹孔/孔间距 | 25X25mm（常规） |
| 振幅 | < 5μm |
产品型号：（可根据客户要求定制不同尺寸）
型号 | 规格（mm） | 支撑数量 | 面板厚度 | 台面厚度 | 螺纹孔/孔距 |
ZI-ZN-06-06 | 600x600x800 | 4 | 6mm | 50mm | M6/25X25mm |
ZI-ZN-075-075 | 750x750x800 | 4 | 6mm | 50mm | M6/25X25mm |
ZI-ZN-09-06 | 900x600x800 | 4 | 6mm | 100mm | M6/25X25mm |
ZI-ZN-10-08 | 1000x800x800 | 4 | 6mm | 100mm | M6/25X25mm |
ZI-ZN-12-08 | 1200x800x800 | 4 | 6mm | 100mm | M6/25X25mm |
ZI-JM-12-09 | 1200x900x800 | 4 | 6mm | 100mm | M6/25X25mm |
ZI-ZN-15-09 | 1500x900x800 | 4 | 6mm | 100mm | M6/25X25mm |
ZI-ZN-16-10 | 1600x1000x800 | 4 | 8mm | 200mm | M6/25X25mm |
ZI-ZN-15-12 | 1500x1200x800 | 4 | 8mm | 200mm | M6/25X25mm |
ZI-ZN-18-10 | 1800x1000x800 | 4 | 8mm | 200mm | M6/25X25mm |
ZI-ZN-18-12 | 1800x1200x800 | 4 | 8mm | 200mm | M6/25X25mm |
ZI-ZN-20-10 | 2000x1000x800 | 4 | 8mm | 200mm | M6/25X25mm |
ZI-ZN-20-12 | 2000x1200x800 | 4 | 8mm | 200mm | M6/25X25mm |
ZI-ZN-24-12 | 2400x1200x800 | 4 | 8mm | 200mm | M6/25X25mm |
ZI-ZN-30-12 | 3000x1200x800 | 6 | 8mm | 200mm | M6/25X25mm |
ZI-ZN-30-15 | 3000x1500x800 | 6 | 8mm | 200mm | M6/25X25mm |
ZI-ZN-35-15 | 3500x1500x800 | 6 | 8mm | 200mm | M6/25X25mm |
ZI-ZN-40-15 | 4000x1500x800 | 6 | 8mm | 200mm | M6/25X25mm |
ZI-ZN-50-15 | 5000x1500x800 | 10 | 10mm | 300mm | M6/25X25mm |
ZI-ZN-60-15 | 6000x1500x800 | 12 | 10mm | 300mm | M6/25X25mm |
